EMT Series Intelligent Type Multi-Turn Electric Actuator

Short Description:

EMT series multi-rotary electric actuator is a kind of actuator with output Angle greater than 360°, suitable for multi-turn operation or linear motion valves, such as gate valves, globe valves, regulating valves and other similar valves; Can be connected with multi-turn reducer to drive large torque valve); can be connected with multi-turn reducer to drive large torque valve; Can also be matched with 90° worm gear reducer to drive angular travel valves such as butterfly valves, ball valves, plug valves and similar valves.EMT series multi-rotary electric actuator uses high efficiency and low inertia motor, output through a cylindrical gear reduction drive worm and worm gear, worm gear through the transmission device to drive the output shaft, so as to output the required torque and speed.
According to the control mode and function configuration, it is divided into basic type, intelligent integration and intelligent type.

Product Detail

Product Tags

Product Video



Warranty: 2 years
Motor Proptection: F grade insulated motor, in order to detect the temperature of the motor, with a temperature control switch to prevent overtemperature, to ensure the safe operation of the motor.Optional: H grade.
Anti Moisture Protection: Epoxy coating.
Absolute Encoder: It has a 24-bit absolute encoder that can precisely record up to 1024 positions, even in the event of power loss. The motor is available in both integration and intelligent types.
High Strength Worm Gear and Worm Shaft:Adopt high strength alloy steel worm and copper alloy worm gear with high wear resistance.
High RPM output: The motor's high RPM enables use with large diameter valves.

Performance Processor: Intelligent  type using high-performance microprocessor, real-time collection of valve position, torque and other operating information, and logical calculation of the true reflection of the running state of the actuator, real-time monitoring and management data.
Safe Manual Override: With hand/electric switching device, with electric priority, automatic reset function, in emergency or debugging state, through the clutch handle to switch the actuator to the manual state, with the hand wheel operation, safe and reliable.
Infrared Remote Control: Integration and Intelligent type come with infrated remote control for easy menu access.
Non-Intrusive set up: The integration and intelligent types can be remotely controlled and have an LCD display and local control buttons/knobs for easy access. Valve position can be set without the need for mechanical actuation.

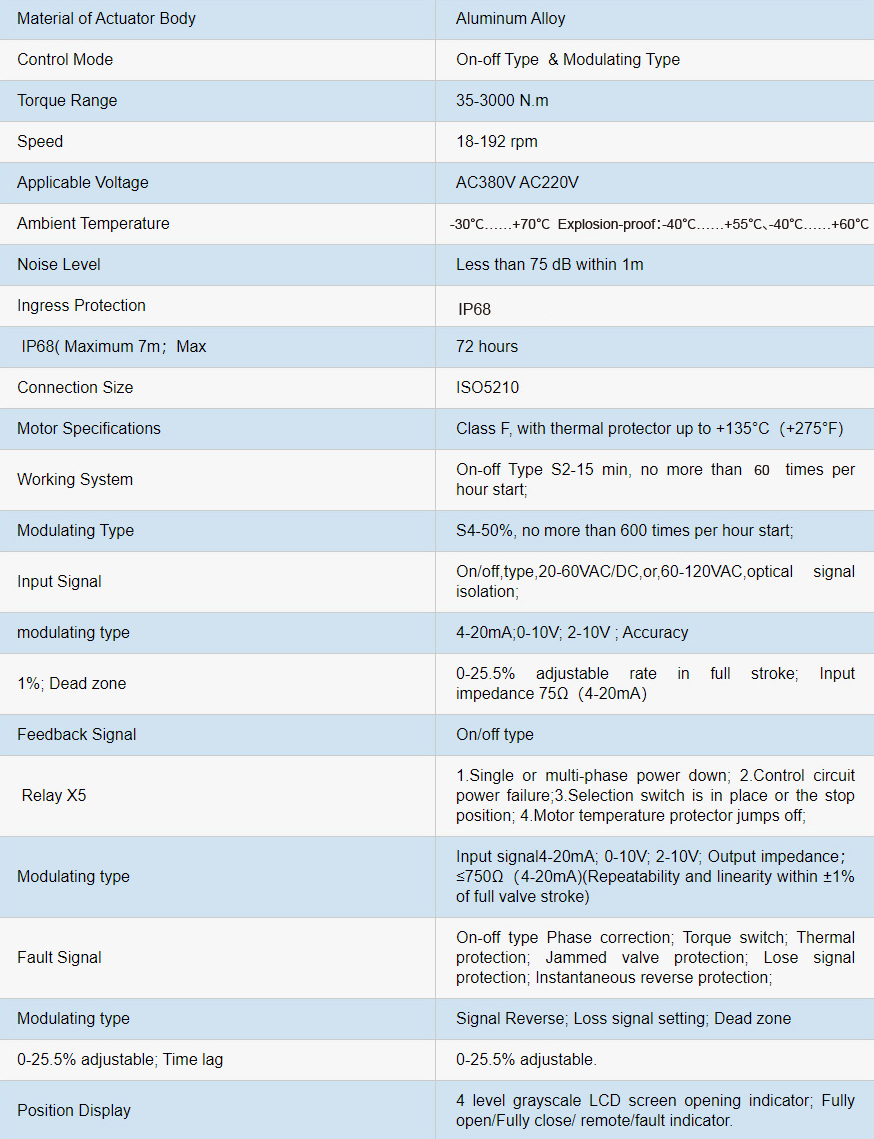

Standard Specification


Performance Parmeter




Package Size


Our Factory




Production Process
