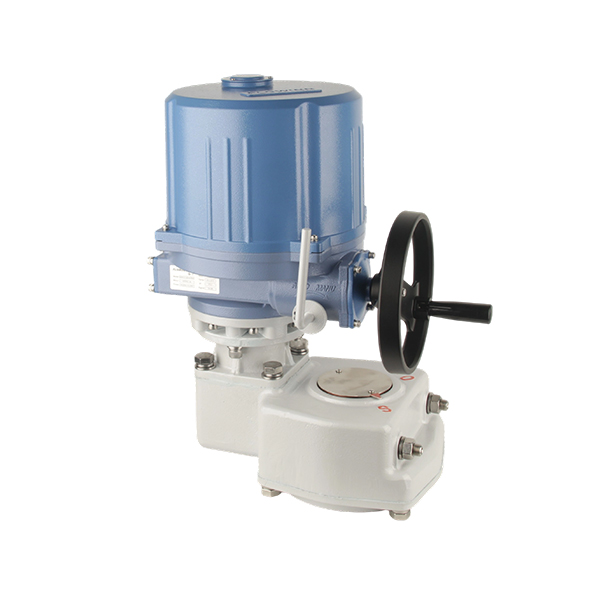

EOH200-EOH500 series basic type electric actuator

Short Description:

EOH series angular travel electric actuator is a two-stage Archimedean worm gear and worm drive, high strength copper alloy worm gear and worm and other mechanisms, through the output shaft, rotation 90 degrees, to control the valve switch device, mainly drive and control such as plug valve, ball valve, butterfly valve and other similar valve applications. Patented worm gear design and hand switch device, eliminate hand wheel follow, to confirm the safety of operators. EOH series clutch type angular travel electric actuator output torque range of 35-5000Nm, the product adopts lightweight design, large torque output, a wider range of options.

Send email to us Download as PDF

Product Detail

Product Tags

Product Video

Advantage

Warranty: 2 years
Long Life: More than 20000 valve operation life
Safe Design: Clutch system: Patented manual override design, prevents motorized hand wheel rotation.
Limit Function: Integrated circuit board+ double CAM design
Operational Safety: Class H motor , with thermal protector up to 150°C
Indicator: 3D indicator cover design can be seen at any time the travel changes of the actuator
Reliable Sealing: In order to effectively ensure the waterproof level, the use of long - lasting sealing ring design
Manual Override: Patent front worm gear design and flashlight switching device, safe and reliable
Worm gear and worm: Two- stage Archimedes worm gear with higher bearing than helical gear design. Provides better loading and force efficiency.
Packaging: Using pearl cotton packaging products

Standard Specification

Torque	2000-5000N.m
Ingress Protection	IP67; Optional: IP68
Working Time	On/off type: S2-15min; Modulating type: S4-50%
Applicable Voltage	1 phase: AC110V/AC220V±10%; 3 phase: AC380V±10%; AC/DC 24V
Ambient Temperature	-25°-60°
Relative Humidity	≤90%（25°C)
Motor Specifications	Class H
Output Connect	ISO5211
Position Indicator	3D open indicator
Protection Function	Torque protection; Motor overheat protection; Heat protection
Feedback signal	On/off travel limit; On/off torque switch; Position feedback potentiometer
Control Signal	Switching control
Cable Interface	2*PG16
