EXC(G)1/A/B series basic type explosion-proof quarter turn small electric actuator

Short Description:

Ex series angular stroke explosion-proof electric actuator is a device to switch valves by rotating 90° through the output shaft, which is mainly used to drive and control the valve opening of angular stroke.Such as butterfly valve, ball valve, plug valve and other similar valve applications. EXC(CG) output torque range is 35-80N.m.EX series explosion-proof electric actuators can be widely used in petroleum, chemical industry, water treatment, shipbuilding, paper making, power station, heating, building automatic control and other industries.

Send email to us Download as PDF

Product Detail

Product Tags

Product Video

Advantage

Warranty: 2 years
Overload Protection: Overtorque function, when the valve clamp valve, the actuator will jump off, to prevent further damage to the valve and the actuator
Explosion-proof Rating: Ex d IIC T6 design and NEPSI & 3C certifications which satisfy the requirements in hazaradous locations.
Operational Safety: Provide over temperature protection, F grade insulated motor, the use of temperature control switch to detect the motor temperature, to ensure the safe operation of the motor.
Voltage Protection: Protection against the high and low voltage situations.
Applicable valve: Ball Valve; Plug Valve; Butterfly Valve,
Anti-corrosion Protection: Epoxy resin enclosure meets NEMA 4X, customer-special painting is available
Ingress Protection: IP67 optional: IP68
Fireproofing Grade: High temperature fireproof enclosure meets requirements in different situation

Flexible use：Small size, can be flexibly used in the use of narrow space

Standard Specification

Material of Actuator Body	Aluminum Alloy
Control Mode	On-off Type & Modulating Type

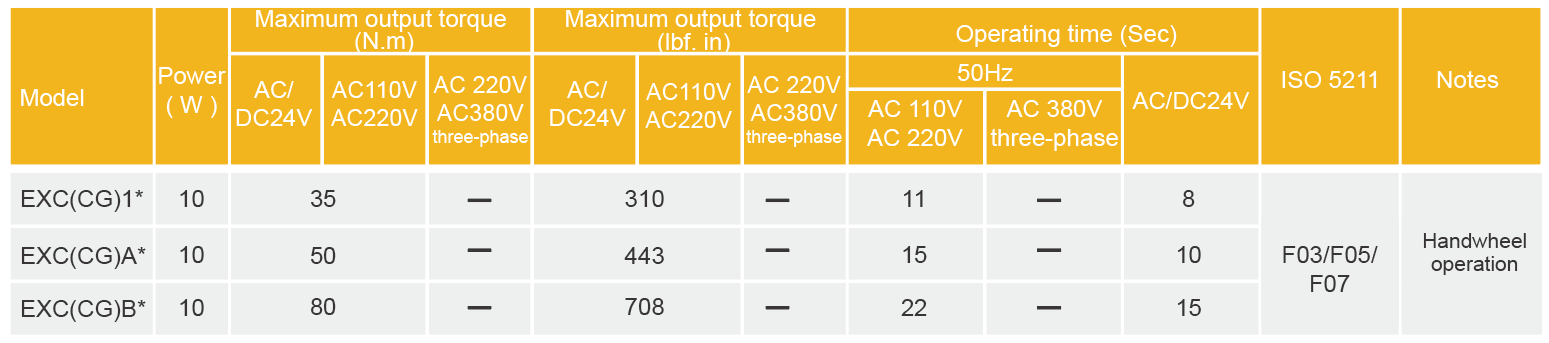

Torque Range	35-80N.m
Running Time	11-22s
Applicable Voltage	1 phase:AC/DC24V / AC110V / AC220V / AC230V /AC240V
Ambient Temperature	-25°C…..70 °C; Optional: -40°C…..60 °C
Anti-vibration Level	JB/T8219
Noise Level	Less than 75 dB within 1m
Ingress Protection	IP67 optional: IP68 ( Maximum 7m；Max:72 hours)
Connection Size	ISO5211
Motor Specifications	Class F; Optional : Class H
Working System	On-off Type: S2-15 min, no more than 600 times per hour start Modulating Type: S4-50% up to 600 times per hour start; Optional: 1200 times per hour
On/off Type Signal	Input Signal:AC/DC 24 input control or AC 110/220v input control Signal Feedback : 1. Close the valve contact 2. Open the valve contact 3. Optional: Closing torque signal contact Local/remote contacts Integrated fault contact 4~20 mA to send. Malfunction Feedback: Integrated fault alarm; Motor overheating; Optional: Undercurrent protection contact
Modulating Type Signal	Input Signal: 4-20mA; 0-10V; 2-10V Input impedance: 250Ω（4-20mA) Ouput singal: 4-20mA; 0-10V; 2-10V Output impedance: ≤750Ω（4-20mA); Repeatability and linearity within ±1% of full valve stroke Signal Reverse: Support Loss Signal Mode Setting: Support Dead Zone: ≤2.5%
Indication	3D opening indicator
Other Function	1. Phase correction(3-phase power supply only) 2. Torque protection 3. Motor overheat protection 4. Moisture- resistant heaters(anti-moisture device)
