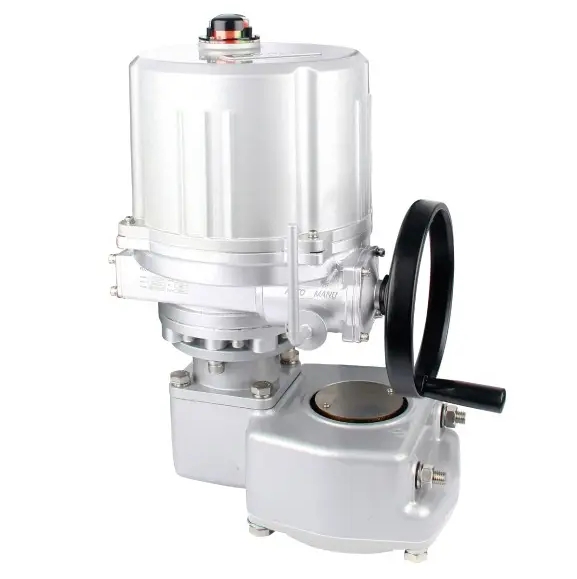

The EOH200-EOH500 series is a basic type electric actuator designed for industrial automation applications. The EOH200-EOH500 Series Basic Type Electric Actuator utilizes a two-stage Archimedean worm gear and worm drive mechanism to deliver high torque output within a compact and lightweight design.
Core Functionality:
Angular Travel: The EOH200-EOH500 Series Basic Type Electric Actuator provides 90° rotation of the output shaft, specifically designed for controlling valve switching devices like plug valves, ball valves, and butterfly valves.
Torque Range: This series offers a wide range of torque options, from 35Nm to 5000Nm, making it suitable for various industrial applications.
Key Features:
Patented Worm Gear Design: FLOWINN‘s patented worm gear design eliminates hand wheel follow, ensuring operator safety by preventing accidental movement during motorized operation.
Long Life: The EOH series boasts a lifespan exceeding 20,000 valve operation cycles, guaranteeing reliable performance over extended periods.
Safe Design: The integrated clutch system features a patented manual override mechanism, allowing for safe and controlled operation even in the event of power failure.
Limit Function: The actuator utilizes a combination of an integrated circuit board and a double CAM design to ensure precise control and limit stops.
Operational Safety: The EOH series comes equipped with a Class H motor featuring a thermal protector rated up to 150°C, offering exceptional protection against overheating.
Visual Indicator: The 3D indicator cover design provides clear visual confirmation of the actuator’s travel status at any given time.
Reliable Sealing: The use of a long-lasting sealing ring design effectively ensures the actuator’s waterproof integrity.
Manual Override: The front worm gear design, coupled with the innovative flashlight switching device, allows for safe and reliable manual operation during power outages or emergencies.
Efficient Force Transmission: The two-stage Archimedean worm gear offers superior bearing capacity compared to helical gear designs, resulting in improved efficiency and load handling capabilities.
Secure Packaging: FLOWINN utilizes pearl cotton packaging for optimal protection during transportation and storage.
Warranty: The EOH200-EOH500 series comes with a standard 2-year warranty, ensuring customer satisfaction and peace of mind.
Overall, the EOH200-EOH500 series basic type electric actuator presents a robust and reliable solution for various industrial automation applications requiring precise valve control, high torque output, and enhanced safety features.
