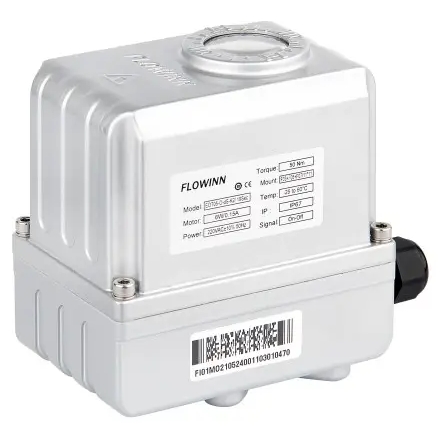

FLOWINN, leveraging years of expertise in valve fluid control, introduces the EOT05 series, a basic type compact quarter-turn small electric actuator designed for precision and versatility across various industries.
Product Overview
The EOT05 series is distinguished by its patented streamlined design, which is not only aesthetically pleasing but also functional, with its small size and light weight making it ideal for applications in confined spaces. The actuator’s principle of operation involves converting the motor’s rotary force through a multistage reduction gear and worm gear mechanism, culminating in a 90° rotation via the output shaft to switch valve devices such as ball valves, butterfly valves, and plug valves.
Key Features
• Torque: Delivers a consistent torque of 50N.m, suitable for a range of valve operations.
• Limit Function: Features a double CAM for convenient travel position setting.
• Process Control: Ensures product quality with strict barcode tracing.
• Operational Safety: Utilizes Class F insulation for the motor winding and a temperature switch to monitor and prevent overheating.
• Anti-Corrosion Resistance: The housing is coated with anti-corrosion epoxy powder, and all fasteners are made of stainless steel for outdoor durability.
• Indicator: A flat pointer indicator provides clear valve position indication.
• Wiring: Simplified with a plug-in terminal for easy electrical connections.
• Sealing: Boasts a long-acting sealing ring for effective waterproofing.
• Moisture Resistance: Equipped with an internal heater to prevent condensation and extend actuator lifespan.
Technical Specifications
• Ingress Protection: Rated IP67 for protection against dust and water immersion.
• Working Time: Offers S2-15min for on/off type and S4-50% for modulating type operations.
• Voltage Compatibility: Supports AC110/AC220V, with options for AC/DC24V.
• Ambient Conditions: Functions in temperatures ranging from -25° to 60° and relative humidity up to 90% at 25°C.
• Motor Specs: Features a Class F motor with a thermal protector.
• Output Connection: Provides ISO5211 direct connection with a star bore.
Control and Communication
• Modulating Functional Configuration: Supports loss signal mode and signal reversal selection function.
• Manual Device: Allows for wrench operation in case of power failure.
• Input Signal: Accepts on/off signals and standard 4-20mA for modulating type, with additional voltage options.
• Output Signal: Provides dry and wet contacts for on/off type and standard 4-20mA for modulating type, with further customization options.
• Cable Interface: Includes 1PG13.5 for on/off type and 2PG13.5 for modulating type.
Warranty and Support
FLOWINN offers a 2-year warranty on the EOT05 series, underscoring the company’s confidence in the product’s reliability and performance.
Conclusion
The EOT05 series from FLOWINN is an embodiment of the company’s dedication to providing high-quality and efficient solutions for building, water treatment, shipping, paper, power plants, heating, light industry, and more. With its high control precision and robust design, the EOT05 series is set to become a go-to actuator for professionals in the field.
