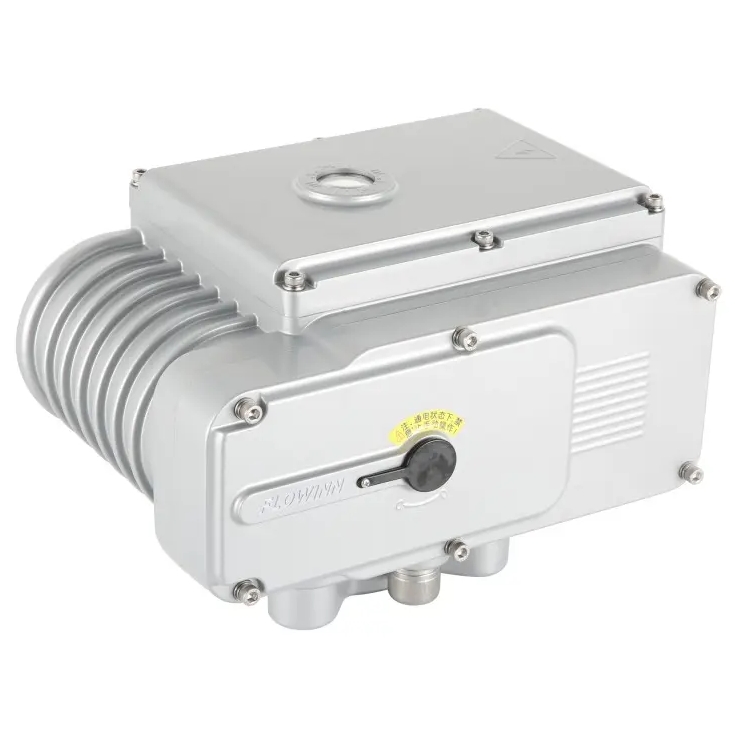

FLOWINN, a name synonymous with innovation in the electric actuator industry, presents the EOT100-250 series basic type quarter turn electric actuator. This series exemplifies FLOWINN’s rich experience in R&D and manufacturing, offering a compact and efficient solution for controlling valve operations.
Robust Design and Superior Performance
The EOT100-250 series basic type quarter turn electric actuator is engineered to deliver precise 90° rotation, driving and controlling the opening of various valves, including ball, plug, and butterfly valves. The actuators are powered by a motor that utilizes multi-stage reduction gears and worm gears, culminating in an output shaft that ensures reliable valve switching.
Durable Construction
Each actuator in the EOT100-250 series boasts a pressed aluminum alloy shell with an anti-corrosion epoxy powder coating, providing exceptional durability and resistance to harsh environments. The output torque range of 1000-2500N.m caters to a wide array of applications, ensuring versatility across different valve types.
Control Modes and Warranty
Operators can choose between modulating type and on/off type control modes, tailoring the actuator’s operation to specific requirements. FLOWINN stands behind the quality of the EOT100-250 series basic type quarter turn electric actuator with a 2-year warranty, reflecting the company’s confidence in its products.
Innovative Features for Enhanced Usability
• Limit Function: The double CAM design allows for convenient stroke setting, making adjustments straightforward and precise.
• Process Control: QR code tracking enables direct tracing of the product’s origin, ensuring transparency and quality assurance.
• Appearance Design: The exquisite design of the actuator makes it suitable for various small space scenarios without compromising on functionality.
• Operational Safety: To prevent overheating, the Class F insulation motor winding is equipped with a temperature switch that monitors the motor’s temperature, guaranteeing operational safety.
• Anti-Corrosion Resistance: The actuator’s shell is coated with epoxy resin powder, enhancing its corrosion resistance and extending its lifespan.
• Indicator: A plane pointer and scale indicate the valve’s opening position, occupying minimal space.
• Wiring Simplicity: The plug-in terminal design facilitates easy and secure electrical connections.
• Reliable Sealing: With an IP67 protection grade and O-ring seal, the actuator is well-protected against water ingress.
• Moisture Resistance: An internal heater prevents condensation within the actuator, further prolonging its operational life.
• Manual Operation: In the event of a power outage, the actuator can be manually operated by opening the rubber cover and using the matching Z-wrench.
• Connecting Flange: The EOT100-250 series basic type quarter turn electric actuator features two sizes of double flanges and octagonal drive sleeves conforming to the ISO5211 standard, ensuring compatibility with various valve flanges.
• Packaging: The product is securely packaged with pearl cotton and meets the ISO2248 drop test standards, ensuring it arrives in perfect condition.
The EOT100-250 series basic type quarter turn electric actuator from FLOWINN represents a leap forward in electric actuator technology, combining aesthetic design with functional excellence. Trust FLOWINN to keep your operations flowing smoothly with the EOT series – where precision meets reliability.
