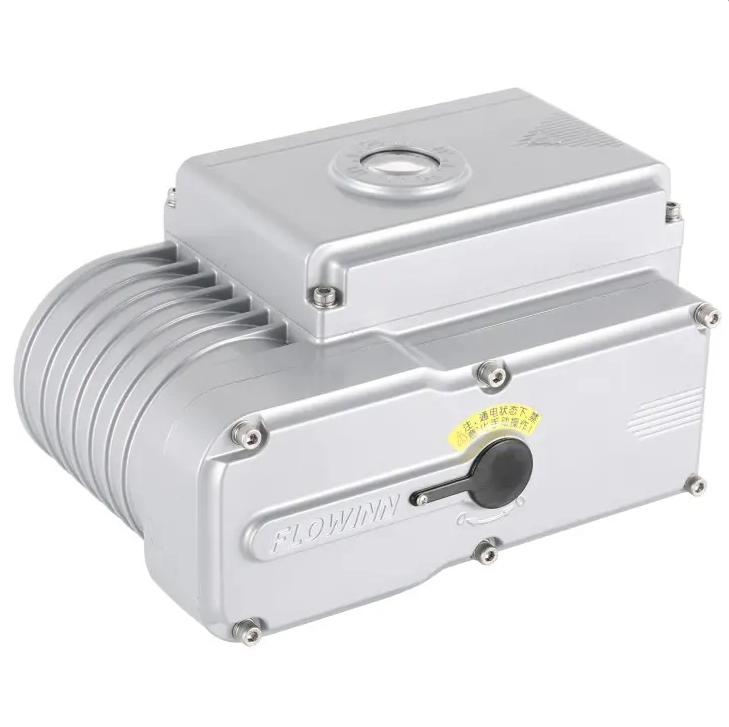

FLOWINN, a seasoned expert in valve fluid control, introduces the EOT20-60 series, a line of compact quarter-turn electric actuators designed to meet the diverse needs of the market. This series exemplifies FLOWINN’s commitment to innovation and quality in fluid control technology.
Product Properties
• Torque Range: Offers a versatile output torque range of 200-600N.m, catering to a wide array of valve operations.
• Housing Material: The housing is crafted from die-cast aluminum alloy, ensuring durability and longevity.
• Transmission Structure: Features a multistage reduction gear, copper alloy worm wheel, and high-strength alloy worm for reliable performance.
• Control Modes: Available in two primary control modes: on/off type for simple operation and modulating type for precise control.
Design and Functionality
• Limit Function: Utilizes a double CAM for easy travel position setting.
• Process Control: Employs a Two-dimensional barcode for efficient tracking of all actuators.
• Appearance: Boasts a patented streamlined design that is compact and lightweight, perfect for small spaces.
• Operational Safety: Equipped with an F pole insulated motor with a temperature control switch to ensure motor safety.
• Anti-Corrosion Resistance: The actuator shell is coated with epoxy resin powder, complemented by stainless steel fasteners for outdoor use.
• Indicator: Features a pointer indicator with an optional 3D opening indicator for clear visibility.
Installation and Operation
• Wiring: Simplified with a plug-in terminal for easy electrical connections.
• Sealing: Incorporates a long-acting sealing ring to guarantee a high water-proof grade.
• Moisture Resistance: Includes an internal heater to prevent condensation and prolong actuator life.
• Manual Operation: Allows for manual valve adjustment with a wrench during power outages.
• Connecting Flange: Designed with double flanges and an octagonal drive sleeve for flexible installation, compliant with ISO5211 standards.
Technical Specifications
• Ingress Protection: Rated IP67, with an optional IP68 rating for submersion up to 7m for 72 hours.
• Working Time: Defined as S2-15min for the switch type and S4-50% for the modulating type.
• Voltage Compatibility: Supports AC110/AC220V, with options for AC/DC24V and AC380V.
• Ambient Conditions: Operates within a temperature range of -25° to 60° and relative humidity up to 90% at 25°C.
• Motor Specs: Grade F motor with a thermal protector for enhanced safety.
• Output Connection: Direct ISO5211 connection with a star bore for ease of integration.
Communication and Control
• Input Signal: Accepts on/off signals for the on/off type and standard 4-20mA for the modulating type, with additional voltage options available.
• Output Signal: Provides 2 dry contacts and 2 wet contacts for the on/off type, and standard 4-20mA for the modulating type, with further customization options.
• Cable Interface: Features 1PG13.5 for the on/off type and 2PG13.5 for the modulating type.
Packaging
• Protection: FLOWINN utilizes pearl-cotton packaging for superior product protection during shipping.
Conclusion
The EOT20-60 series from FLOWINN is a testament to the company’s dedication to providing advanced, reliable, and user-friendly quarter-turn electric actuators. With its robust design, versatile functionality, and comprehensive features, the EOT20-60 series is set to become a staple in the valve fluid control industry.
